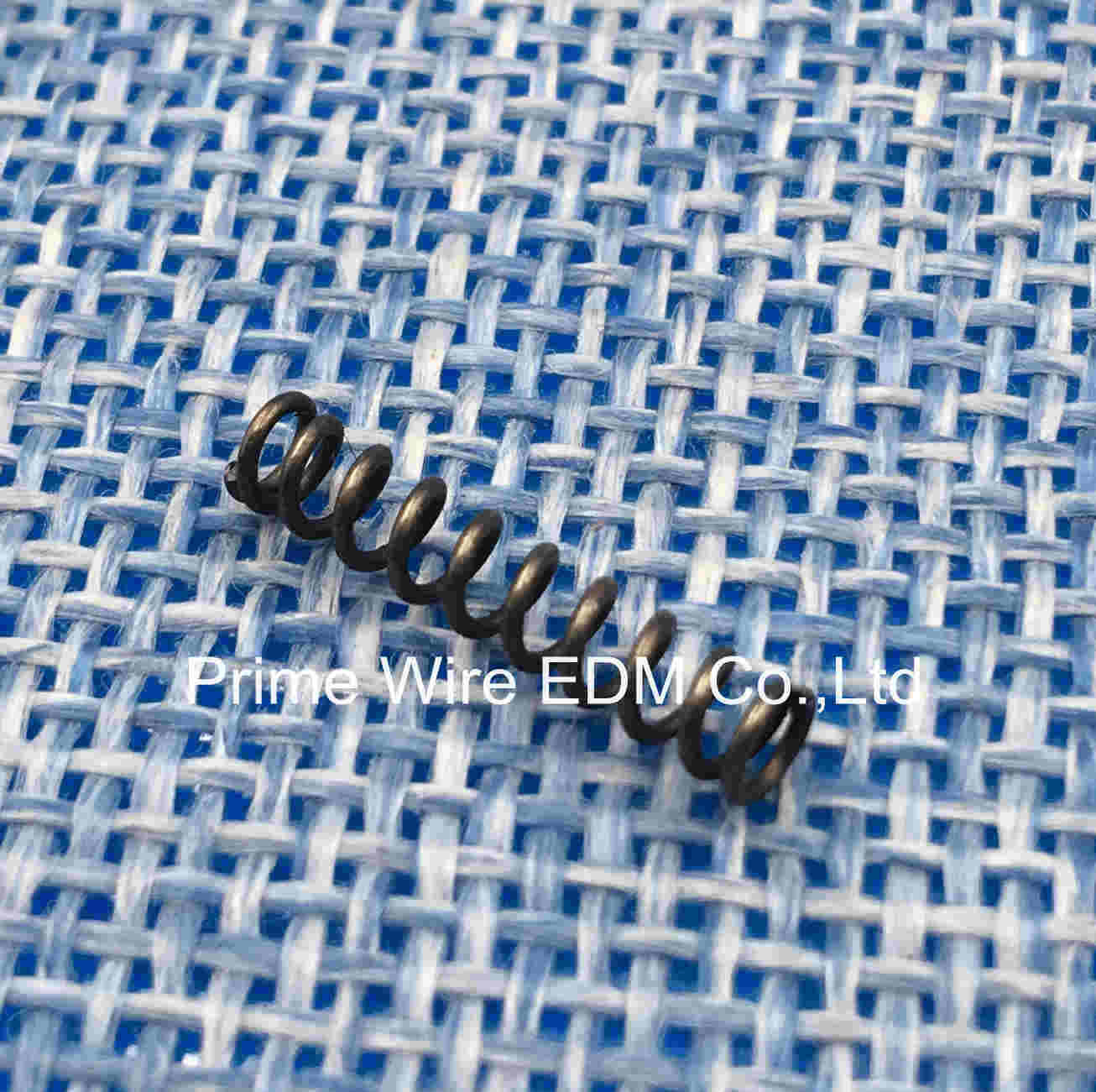

A290-8110-Y728  Upper subdie guide spring



For use on :

Fanuc α-0iD with AWF, Fanuc α-0iE with AWF, Fanuc α-1iD with AWF, Fanuc α-1iE with AWF,
Fanuc α-C400iA with AWF, Fanuc α-C400iB with AWF, Fanuc α-C600iA with AWF,
Fanuc α-C600iB with AWF, Fanuc α-C800iA with AWF, Fanuc α-C800iB with AWF



Associated parts & OEM number：

A : Cooling water cover    A290-8110-V727#STD

B : Upper subdie guide cover   A290-8116-Y754

C : Upper subdie guide spring  A290-8110-Y728

D : Upper subdie guide  A290-8116-X726

E : Upper subdie guide seat  A290-8102-X727

F : Upper subdie guide base  A290-8116-Y753

G : Upper guide block   A290-8116-Y751

H : Upper electrode pin  A290-8110-X750

I : Upper guide block A  A290-8116-Y752

J : Slide pin   A290-8116-Y756
